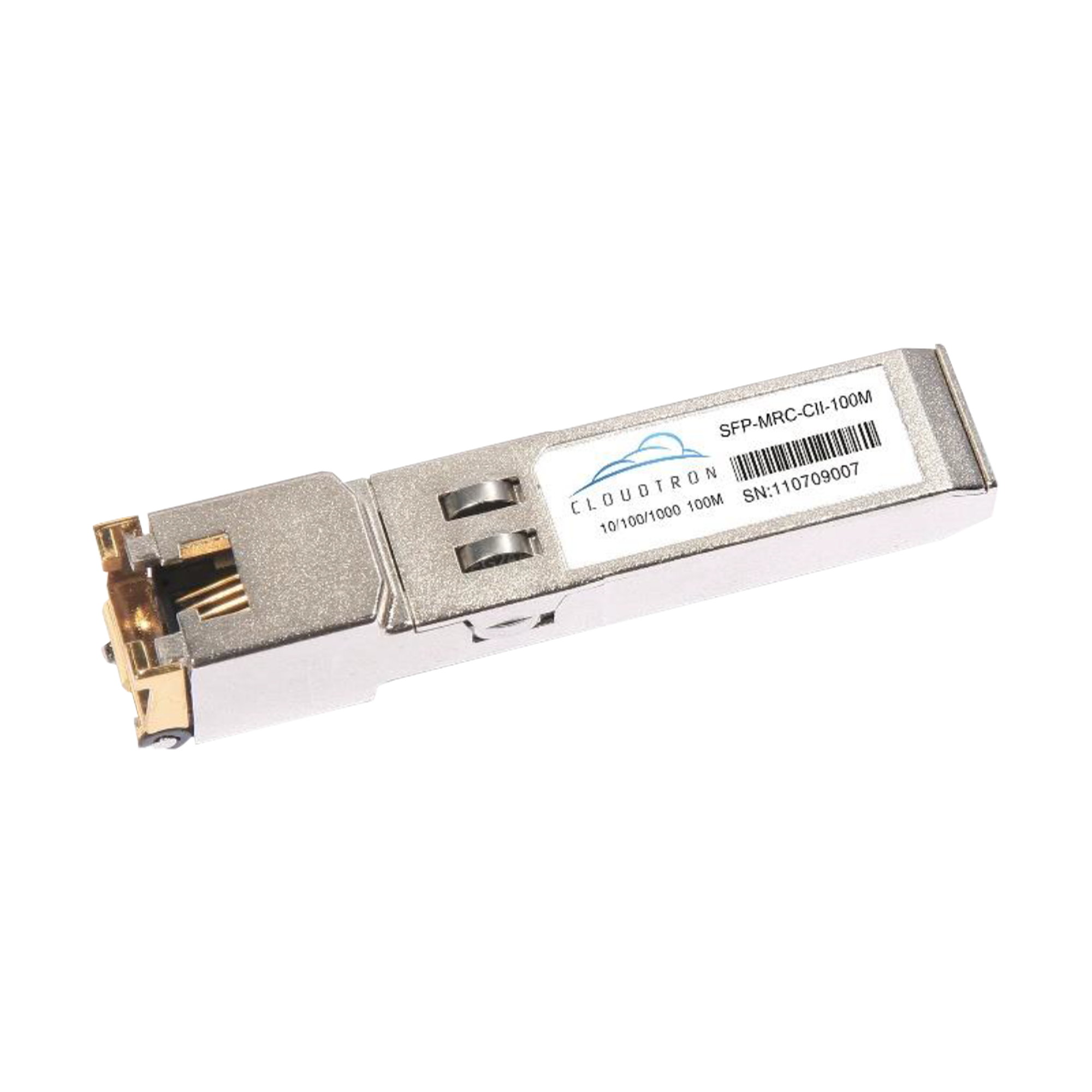

SFP-MRC-CII-100M

10/100/1000 BASE-T Copper SFP Transceiver

Product Description

Cloudtron SFP-MRC-CII-100M 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The SFP-MRC-CII-100M is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded).

Product Features

  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Low power dissipation (1.05W typical)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Case operating temperature
    •  Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
