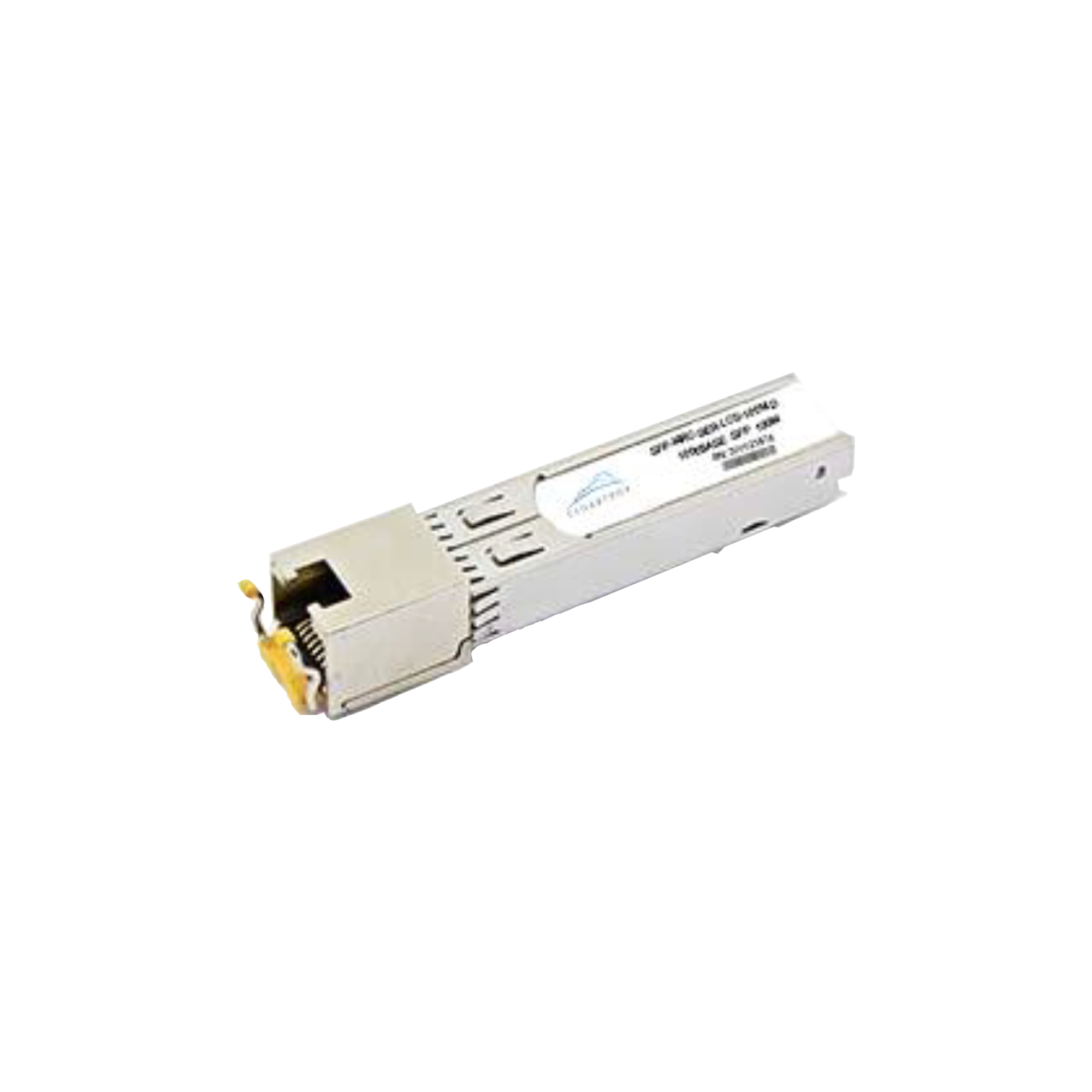

SFP-MRC-SER-LOS-100M-D

1000BASE-T & Serdes interface Copper SFP Transceiver RoHS Compliant

Product Description

SFP-MRC-SER-LOS-100M-D 1000BASE-T Copper Small Form Pluggable (SFP) modules are based on the SFP Multi Source Agreement (MSA). It is compliant with the Gigabit Ethernet standard as specified in IEEE STD 802.3 and can fully satisfy the 1000BASE-T application.

Product Features

  • Support 1000BASE-T Operation in Host System
  • For 100m Reach over Cat 5 UTP Cable
  • Hot-Pluggable SFP Footprint
  • Fully Metallic Enclosure for Low EMI
  • Low Power Dissipation (1.05 W Typical)
  • Compact RJ-45 Connector Assembly
  • LOS 1000M Indicator
  • Access to Physical Layer IC via 2-Wire Serial Bus
  • Operating Case Temperature
    • Standard: 0 °C ~ 70 °C
    • Industrial: -40 °C ~ 85 °C
  • Detailed Product Information in EEPROM
  • Compliant with SFP MSA
  • Compliant with IEEE Std 802.3
  • Safety Certification: TUV/UL/FDA
  • RoHS Compliant

Applications

  • LAN 1000Base-T
  • Gigabit Ethernet Over Cat 5 Cable
  • Switch to Switch Interface
  • Router/Server Interface



Ordering Information

Product Part Number
Data Rate
Cable Type
Distance
RX-LOS
Temp.

SFP-MRC-SER-LOS-100M-D

Linke Side: 1000 BASE-T preffered Master

Host Side: SERDES interface, enable the auto-negotiation, Support Rx_LOS

Cat5

100m

YES

Standard
