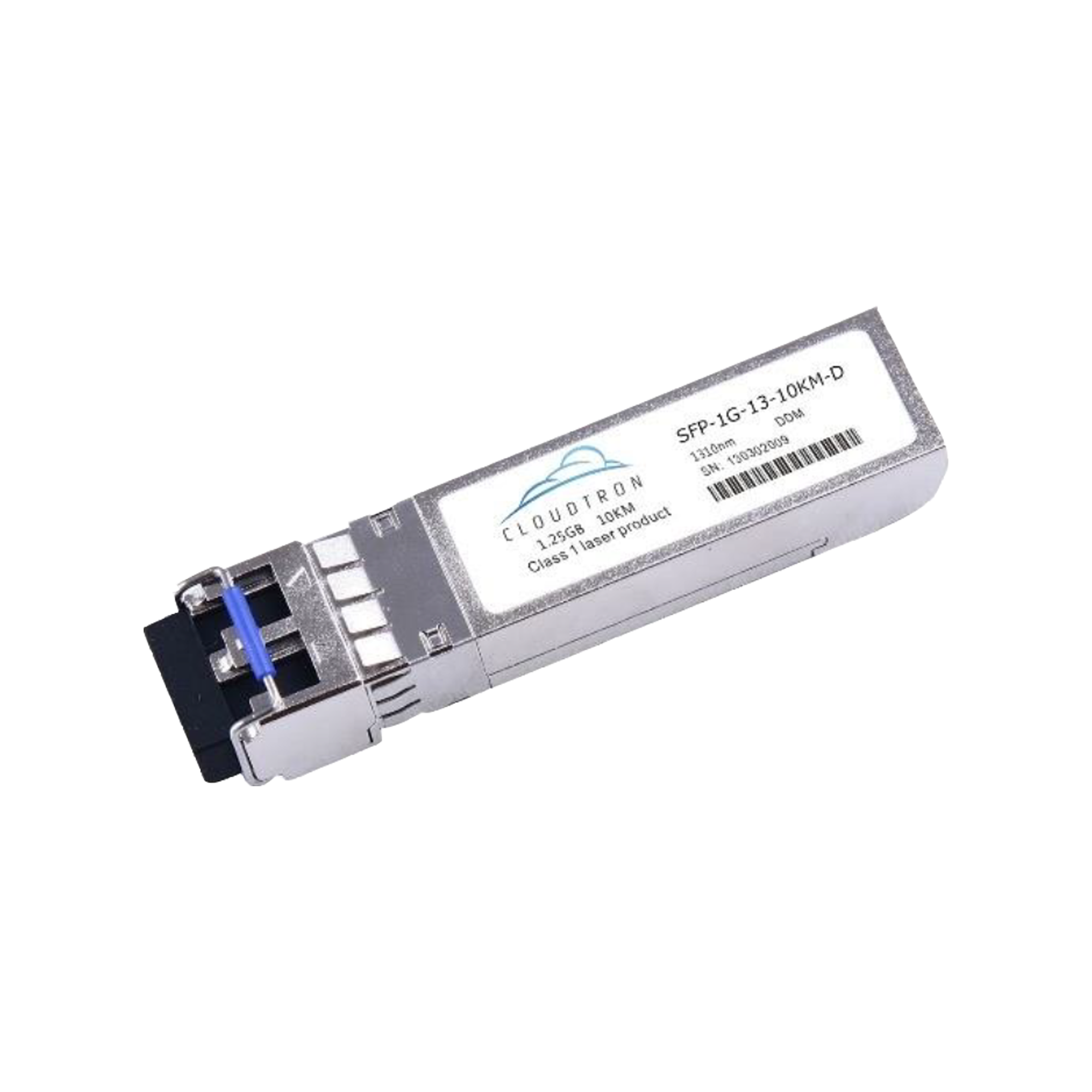

SFP-1G-13-10K-D
1.25Gb/s 1310nm Single-mode SFP Transceiver
Product Description
Cloudtron SFP-1G-13-10K-D Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fibre.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Product Features
- Up to 1.25Gb/s data links
- FP laser transmitter and PIN photo-detector
- Up to 10km on 9/125μm SMF
- Hot-pluggable SFP footprint
- Duplex LC/UPC type pluggable optical interface
- Low power dissipation
- Metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- Support Digital Diagnostic Monitoring interface
- Compliant with SFF-8472
- Case operating temperature:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
Applications
- Switch to Switch Interface
- Gigabit Ethernet
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
Ordering Information
Product Part Number
Data Rate (Mbps)
Media
Wavelength (nm)
Transmission Distance (m)
Temperature Range (Tcase) (°C)
SFP-1G-13-10K-D
1250
Single mode fibre
1310
10
0~70
Commercial
SFP-1G-13-10K-DI
1250
Single mode fibre
1310
10
-40~85
Industrial
